Product Description

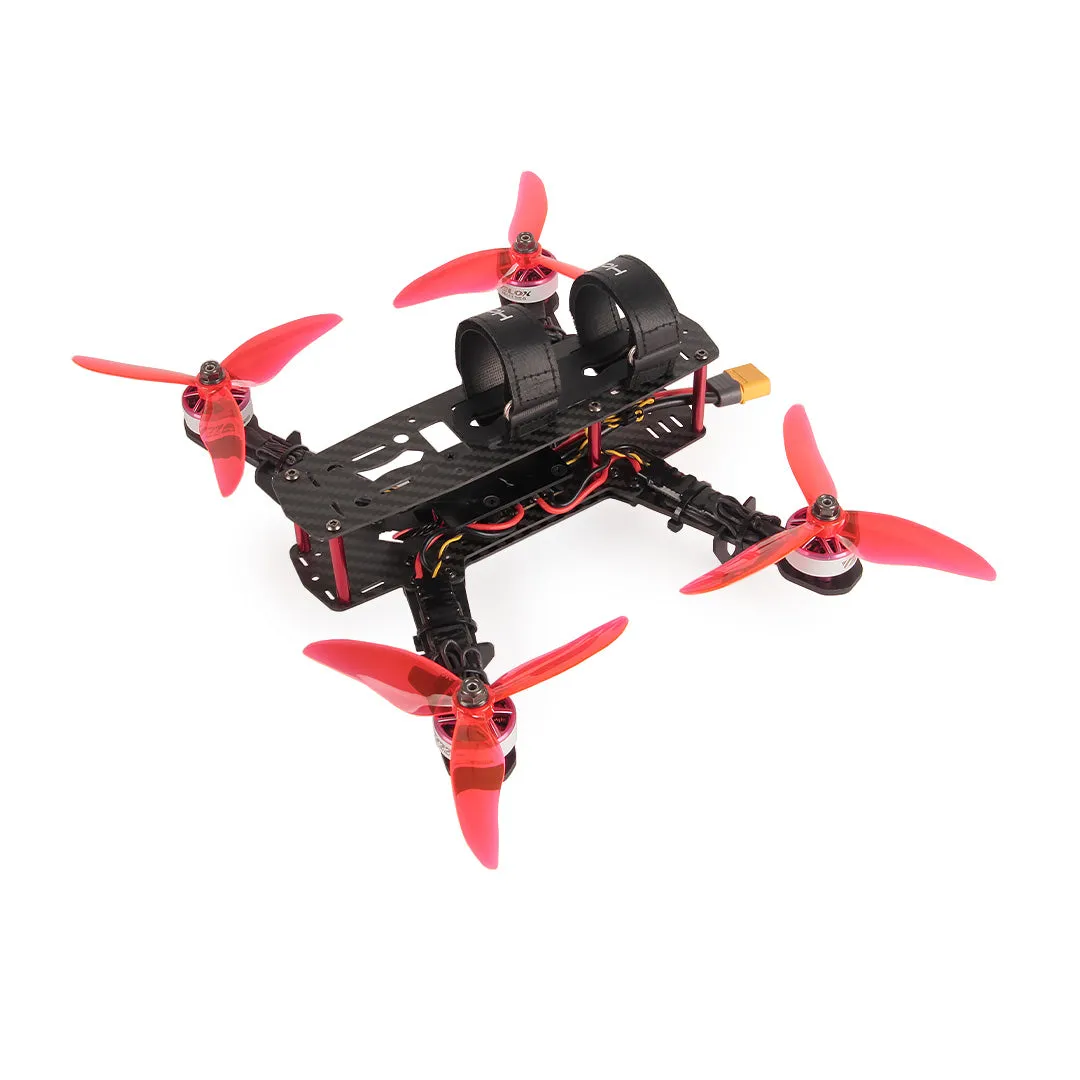

The QAV250 Kit is the perfect way to get started developing on either PX4 or Ardupilot. It pairs a carbon fiber 250 racing frame and essential electronics with   autopilot. The kit is easy to assemble. No soldering needed.

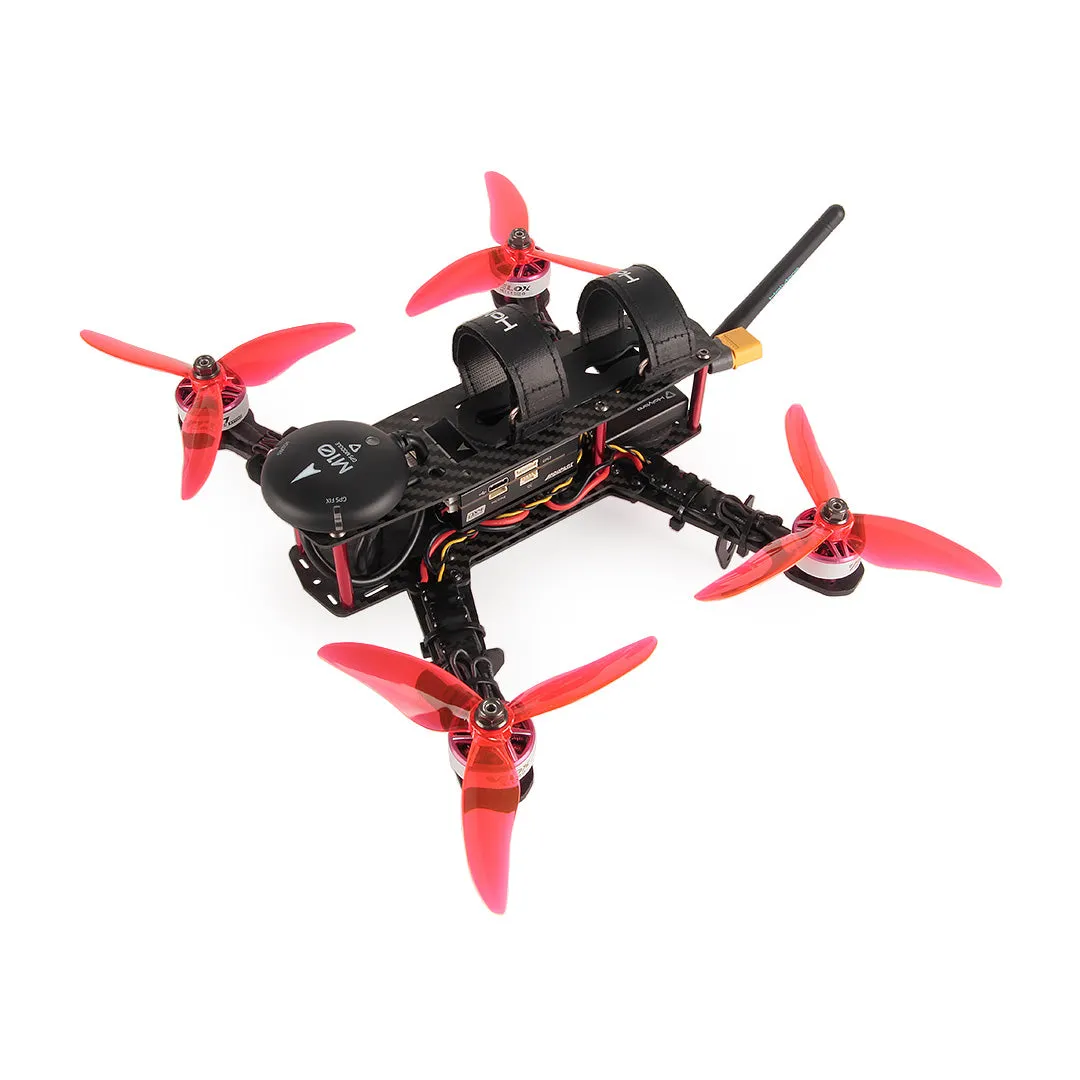

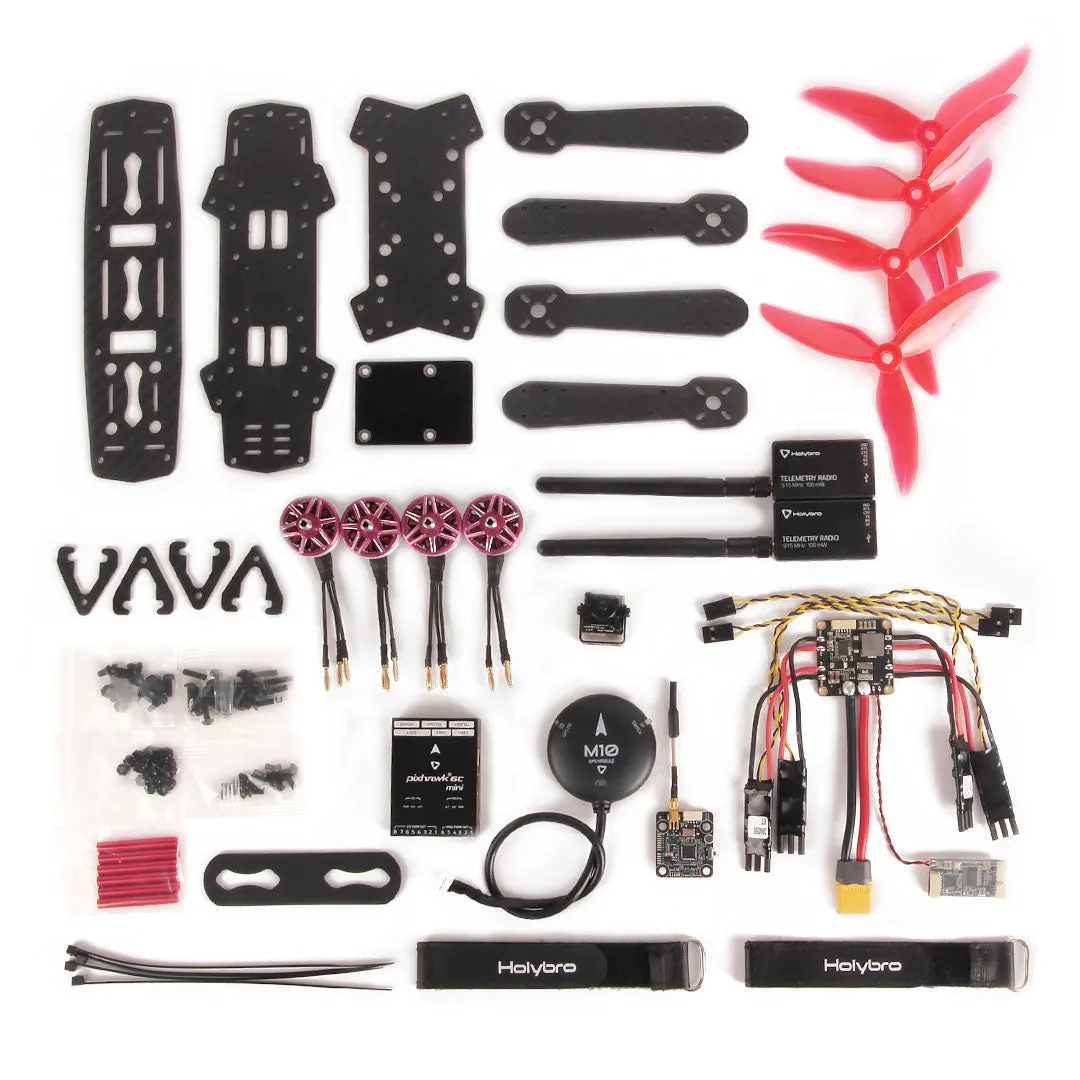

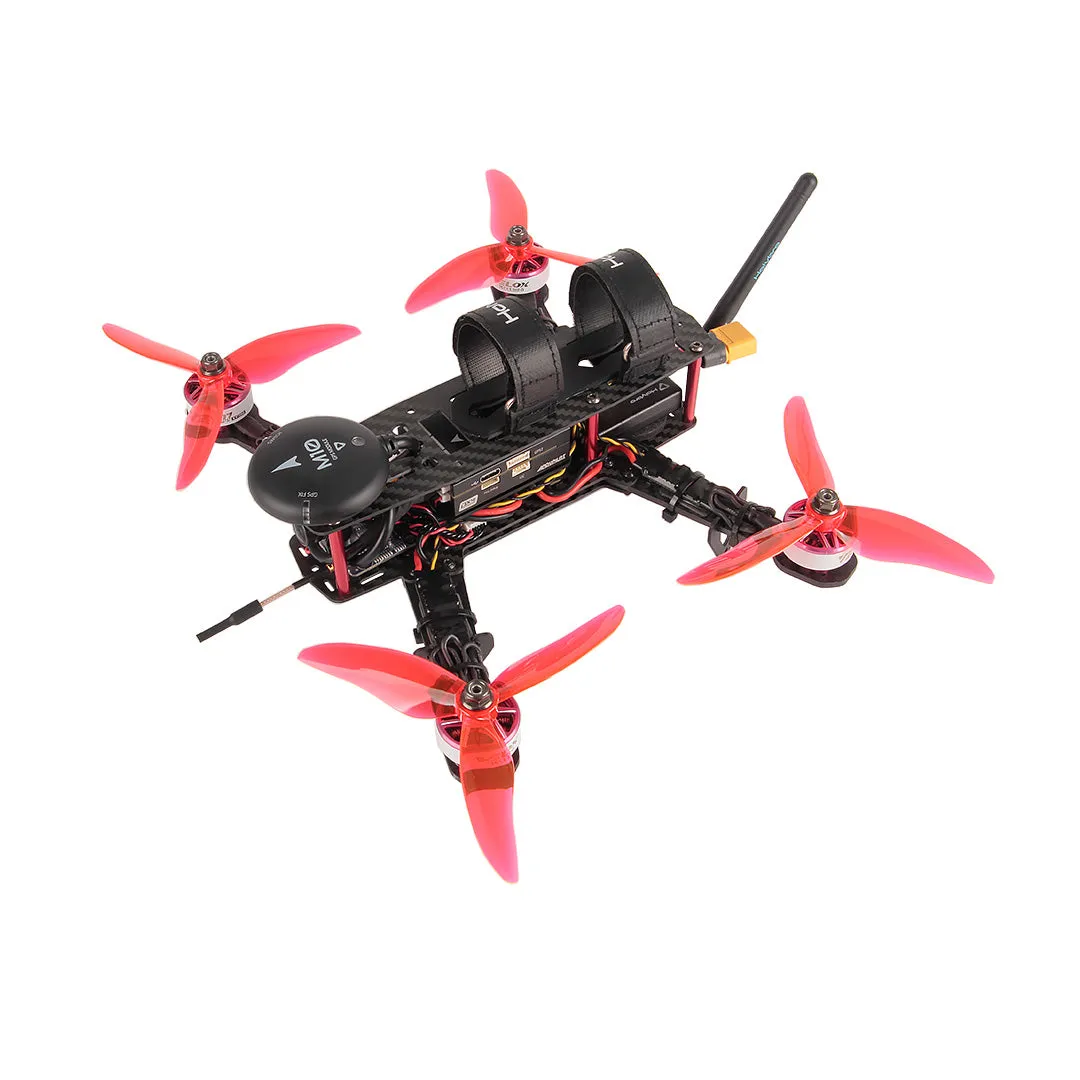

Pixhawk 6C Mini QAV250 Complete Kit Contents

• flight controller
• Carbon fiber 250 airframe with hardware
• Motors - 2207 KV1950
• 5” Plastic Props

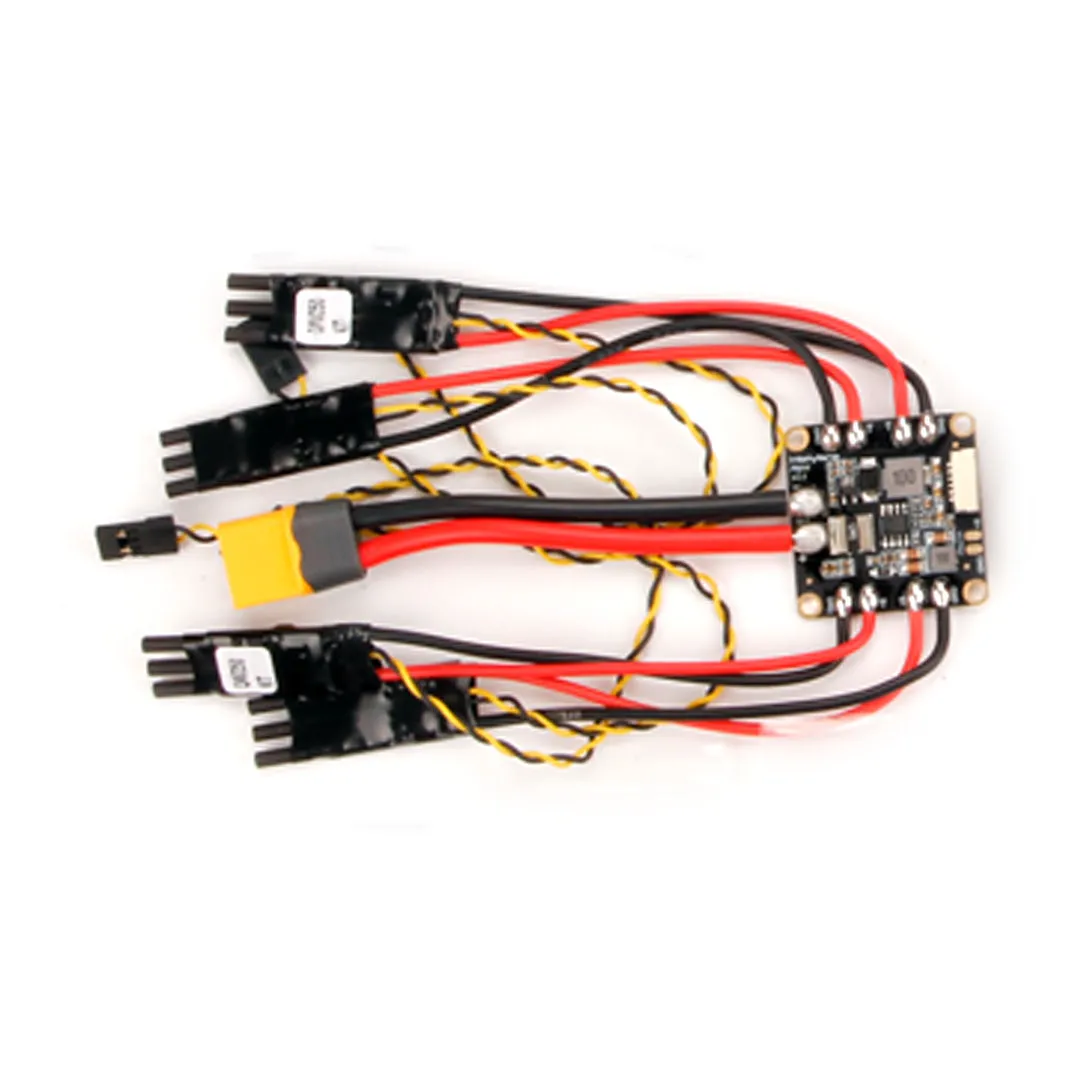

• Fully assembled Power Management Board with ESCs(BLHeli S ESC 20A)
• Foxeer Predator 5 Micor FPV Camera
• Power and Radio Cables
• Battery Straps
• Dimensions:198*235*85mm
• Wheelbase:250mm
• Weight:456g

Note: No LiPo battery included.

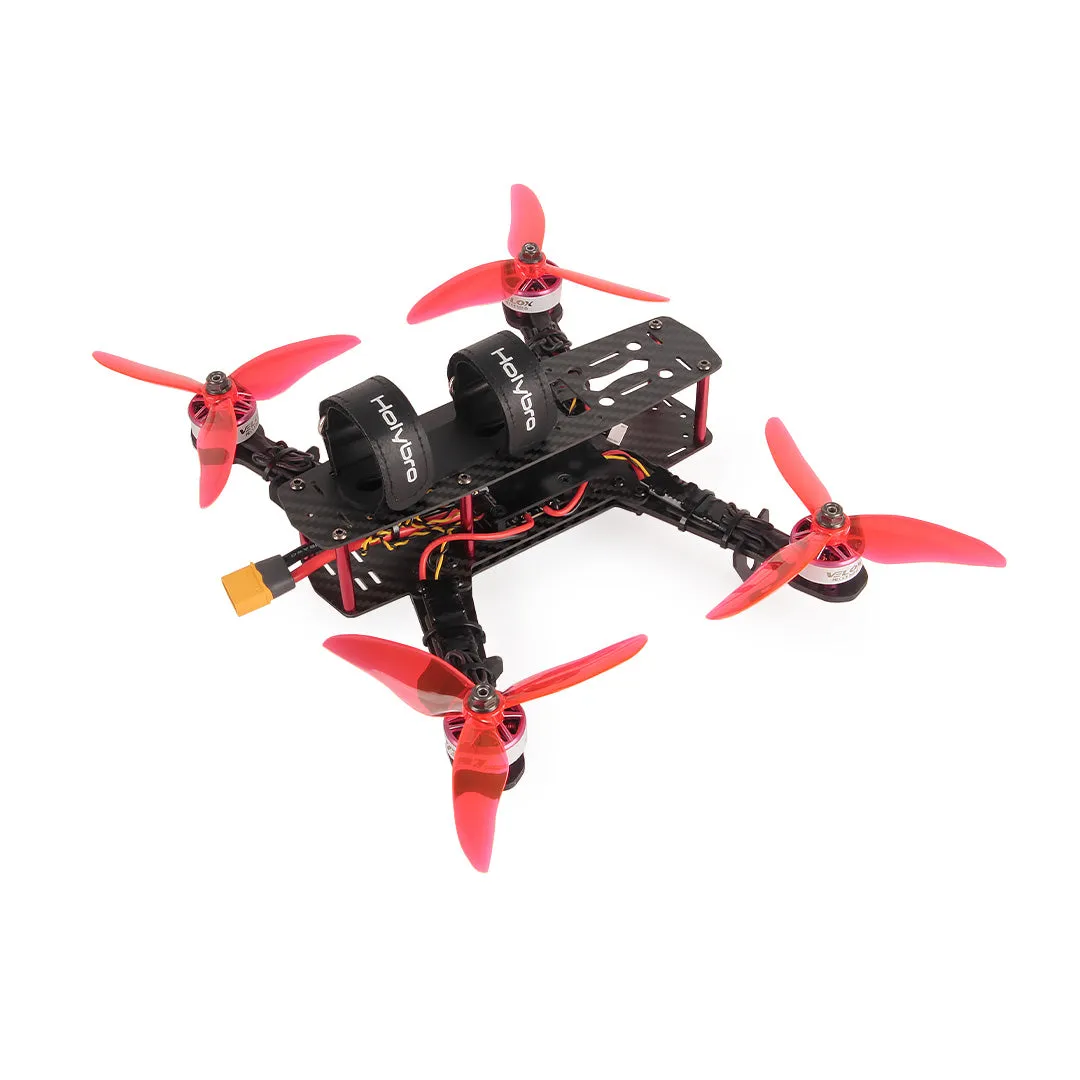

Pixhawk 6C Mini QAV250 Basic Kit (SKU30150,30151) Contents

•  flight controller
• Carbon fiber 250 airframe with hardware
• Motors - 2207 KV1950
• 5” Plastic Props
• Fully assembled Power Management Board with ESCs(BLHeli S ESC 20A)
• Power and Radio Cables
• Battery Straps
• Dimensions:198*235*85mm
• Wheelbase:250mm
• Weight:440g

Note: No LiPo battery included.

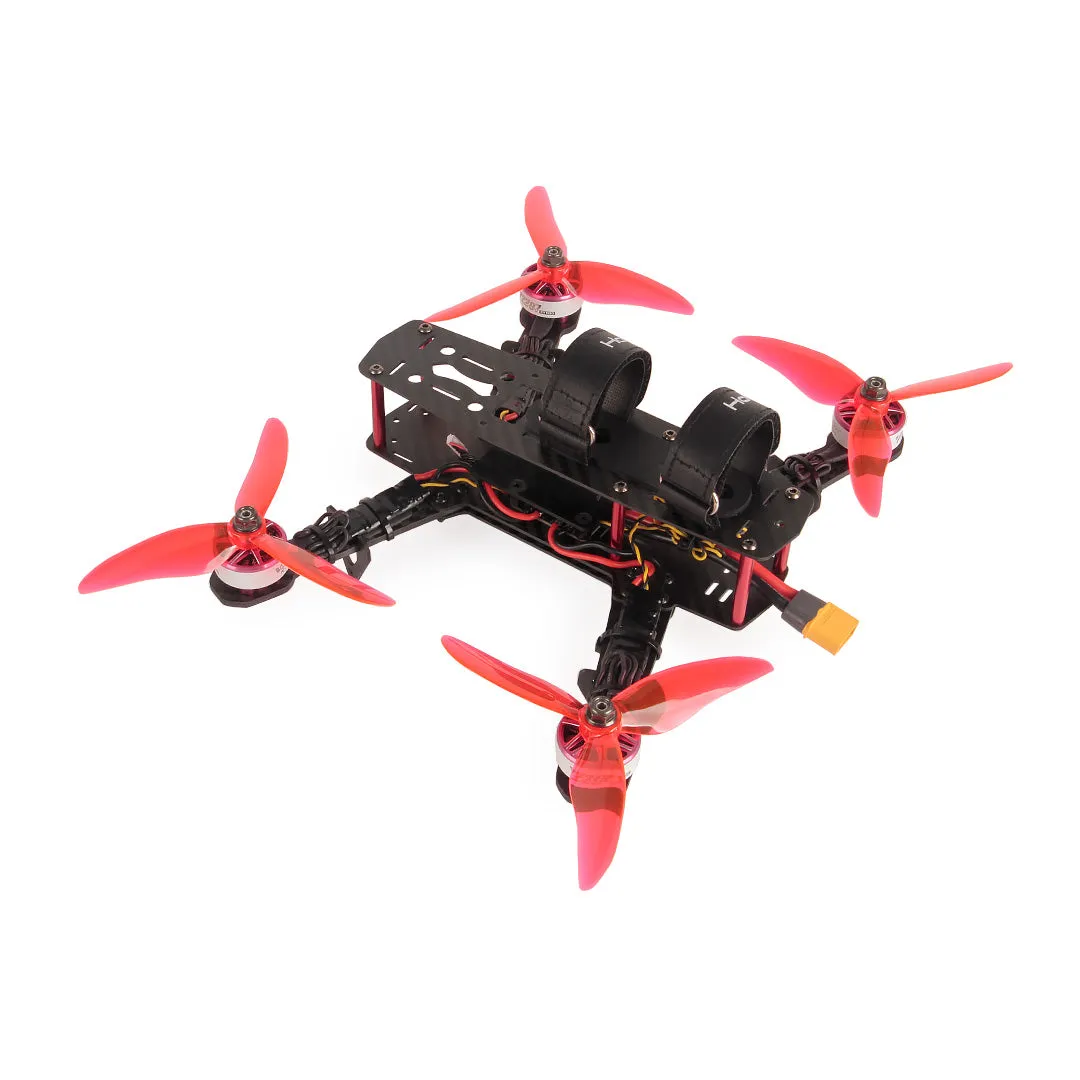

QAV250 ARF Kit (SKU30149) Contents

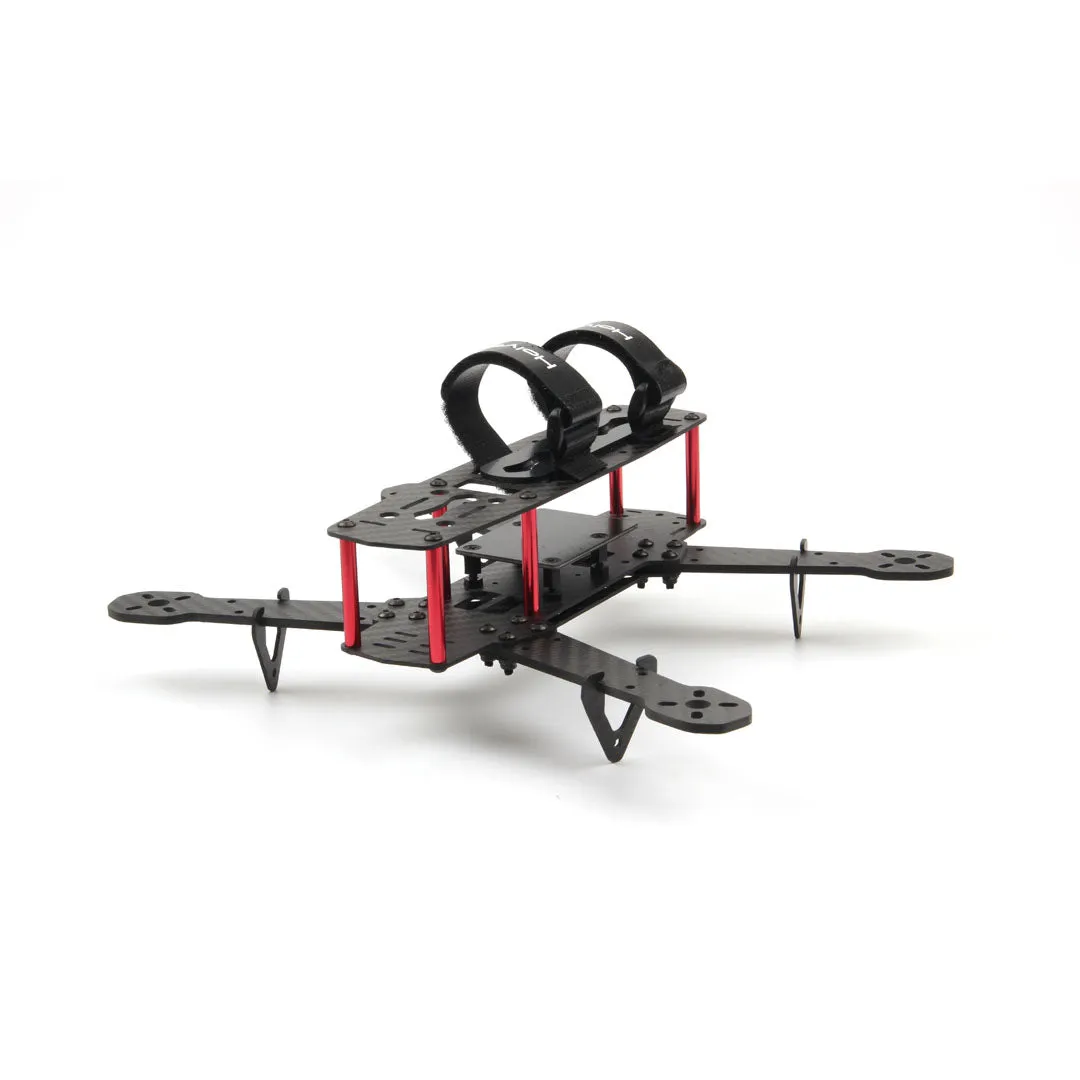

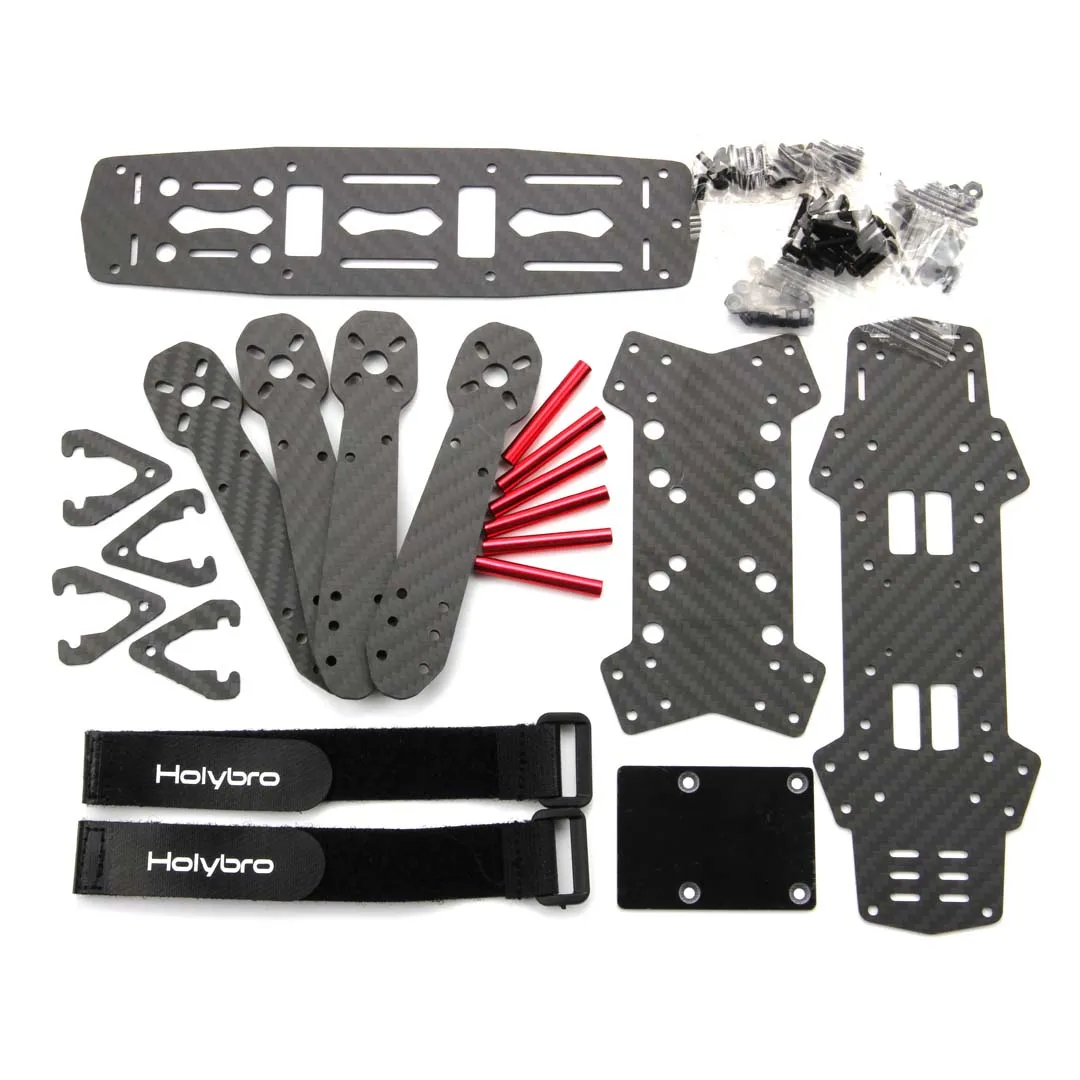

• Carbon fiber 250 airframe with hardware
• Motors - 2207 KV1950
• 5” Plastic Props
• Fully assembled Power Management Board with ESCs(BLHeli S ESC 20A)
• Battery Straps
• Dimensions:198*235*70mm
• Wheelbase:250mm
• Weight:347.2g

Note: No LiPo battery included.

Micro OSD V2  Connection

Recommended Battery Specification: 4S 2200~3000mAh Lipo
Max payload: up to 500g (With 4S 3000 mAh battery)

Manual:

Some Tips:

Spare Parts-QAV250 Kit
